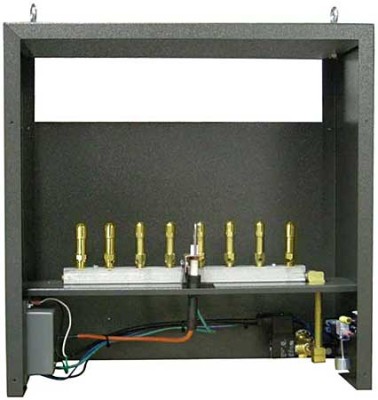

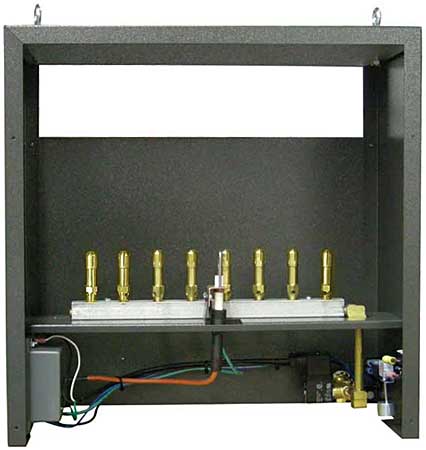

C.A.P. CO2 Generator (GEN-2)

Provides years of trouble-free operation! C.A.P. CO2 generators are constructed with powder coated steel enclosures that resist moisture, rust and discoloration.

Manufactured in the USA using only AGA and/or UL listed components that are appropriate for use with both propane and natural gas. Includes CAP’s 5-year no hassle warranty.

Each unit ships complete with a low-pressure, in-line natural gas (NG) regulator or the new Type-1 style “no-tool-required” propane (LP) regulator that makes tank replacement easy.

The GEN-2 operates up to 100 degrees cooler than other competitive products and can be easily converted from propane to natural gas or vise-verse in less than 10 minutes with an inexpensive kit (sold separately).

Both the GEN-1 and GEN-2 are expandable! This allows you to increase the units capacity to produce CO2 simply by installing additional burners.

Each burner increases the CO2 generating capacity by approximately 3 cubic feet per hour. There is no need to purchase a different generator if your needs increase!

The GEN-2 is capable of producing between 16 and 26 cubic feet of CO2 per hour and is recommended for larger areas up to 30′ x 30′. It comes standard with 5 burners, producing approximately 16 cubic feet of CO2 per hour.

The GEN-2e has a pilotless electronic ignition, instead of the traditional “pilot light,” and comes standard with 5 burners, producing approximately 16 cubic feet of CO2 per hour.

Both units can be expanded to a maximum of 8 burners, increasing their capacity up to approximately 26 cubic feet of CO2 per hour. All units come with a 3 year no hassle warranty.

Size: 17″ H x 16.5″ W x 8.5″ D

GEN-2 Instruction Manual – PDF format
GEN-2e Instruction Manual – PDF format

Note: Special high altitude burners (above 3,500′) are available, please ask.
