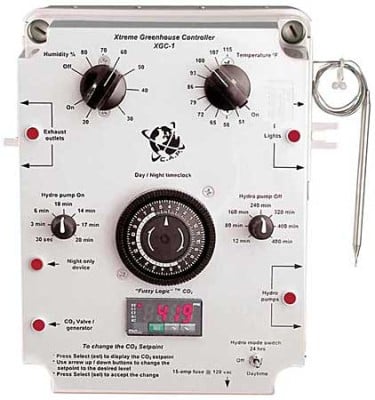

Xtreme Greenhouse Controller (XGC-1e)

The best all-in-one controller ever made! CAP’s Xtreme Greenhouse Controller operates all of the main devices required in today’s modern hydroponic garden including Digital CO2 PPM Control. Your garden’s HID lights are controlled by a precision 24-hour time clock. Two outlets are provided for your lights.

Other functions such as supplemental CO2 and hydroponic pumps are also coordinated with the time clock. Two of the outlets on the XGC-1e are for your exhaust fans or air conditioner.

A built-in thermostat and humistat handle the growing area’s temperature and humidity control functions. The two pump outlets allow your water pumps to be controlled by the built in Adjustable Recycling Timer.

A selector switch allows the user to determine if the hydroponic pumps are to cycle only when the lights are ON or 24 hours a day. An auxiliary NIGHT outlet is activated when the lights are turned off. It is perfect for controlling humidity at night using a dehumidifier or for a separate heater.

Supplemental CO2 is coordinated to work in harmony with your exhaust fan’s temperature and humidity control functions. When the exhaust fans are running, the CO2 outlet is disabled to conserve CO2. A Fuzzy Logic CO2 Digital PPM Controller is built in to control your CO2 generator or valve.

Rated for 15 amps @ 120 volts. Includes a 5-year manufacturer’s no hassle warranty. Made in the USA.

Instruction Manual – PDF format

Grower’s Tip:
The XGC-1e is designed to operate from a 120-volt, 15-amp power source. It can safely control up to 15-amps of equipment including up to 1000 watts of HID lights. If required, additional lights and larger equipment can be connected by using CAP’s High Power Relay, Master Light Controllers or Universal Power Modules.
