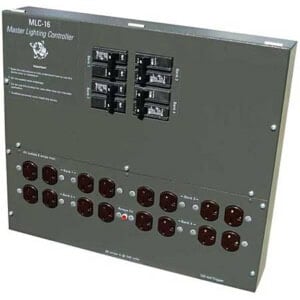

The C.A.P. MLC-16X represents the latest in large scale lighting control. It is the best devices for controlling up to 16 lights from one time-clock or controller. ALL outlets are circuit breaker protected!
You run 80 (MLC-16X) amp power to the MLC, and all of the outlets are controlled by one 120 volt trigger cable. You can plug the trigger cable into a standard 24 hour timer or lighting controller.
The MLC-16X features a 120/240 volt style outlets, which allows for running your ballasts at 120/240 volts without having to change out your ballast power cords. The MLC-16X contains 4 banks of 4 lights. Dual trigger cables are also available to split 2 series of 4 lights. Each bank of 4 lights is protected by a 20 amp circuit breaker.
The MLC-16X’s are rated for 80 amps @ 120/240 volts. Includes a 5-year manufacturer’s no hassle warranty. Made in the USA.
You must provide over current protection for the MLC-16X using an 80 amp double pole circuit breaker at the main panel (require a wire size of at least 4 AWG). Make certain that your ballasts are wired for 240-volt.
